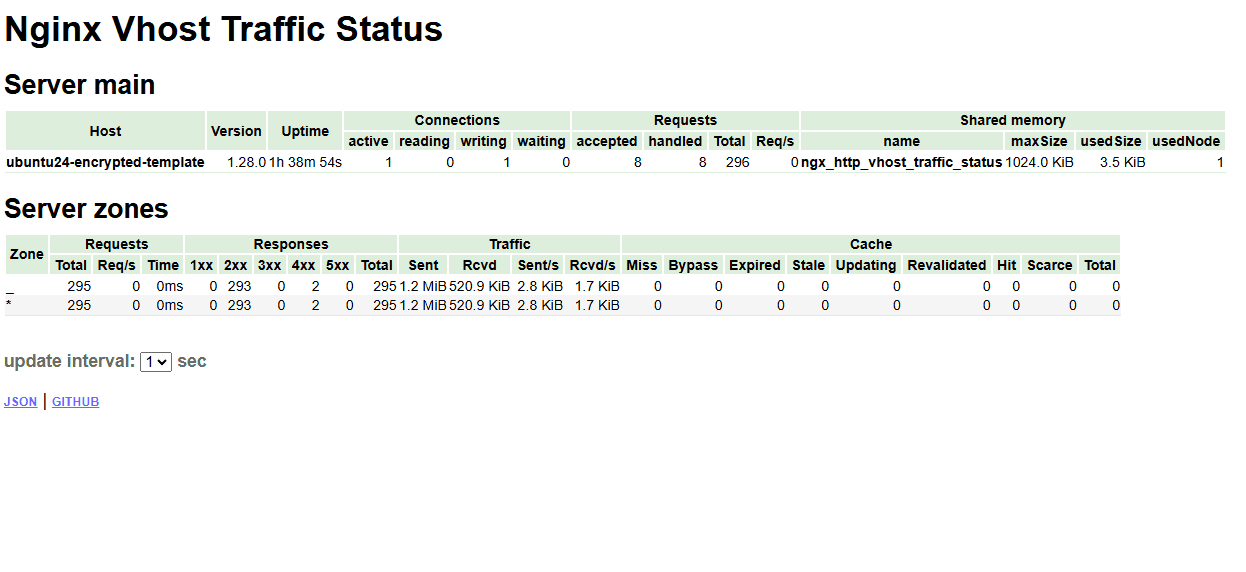

📋 Prerequisites Install base tools and keys: sudo apt update && sudo apt install -y \ curl gnupg2 ca-certificates lsb-release debian-archive-keyring Add NGINX.org signing key: curl https://nginx.org/keys/nginx_signing.key | gpg --dearmor | sudo t...

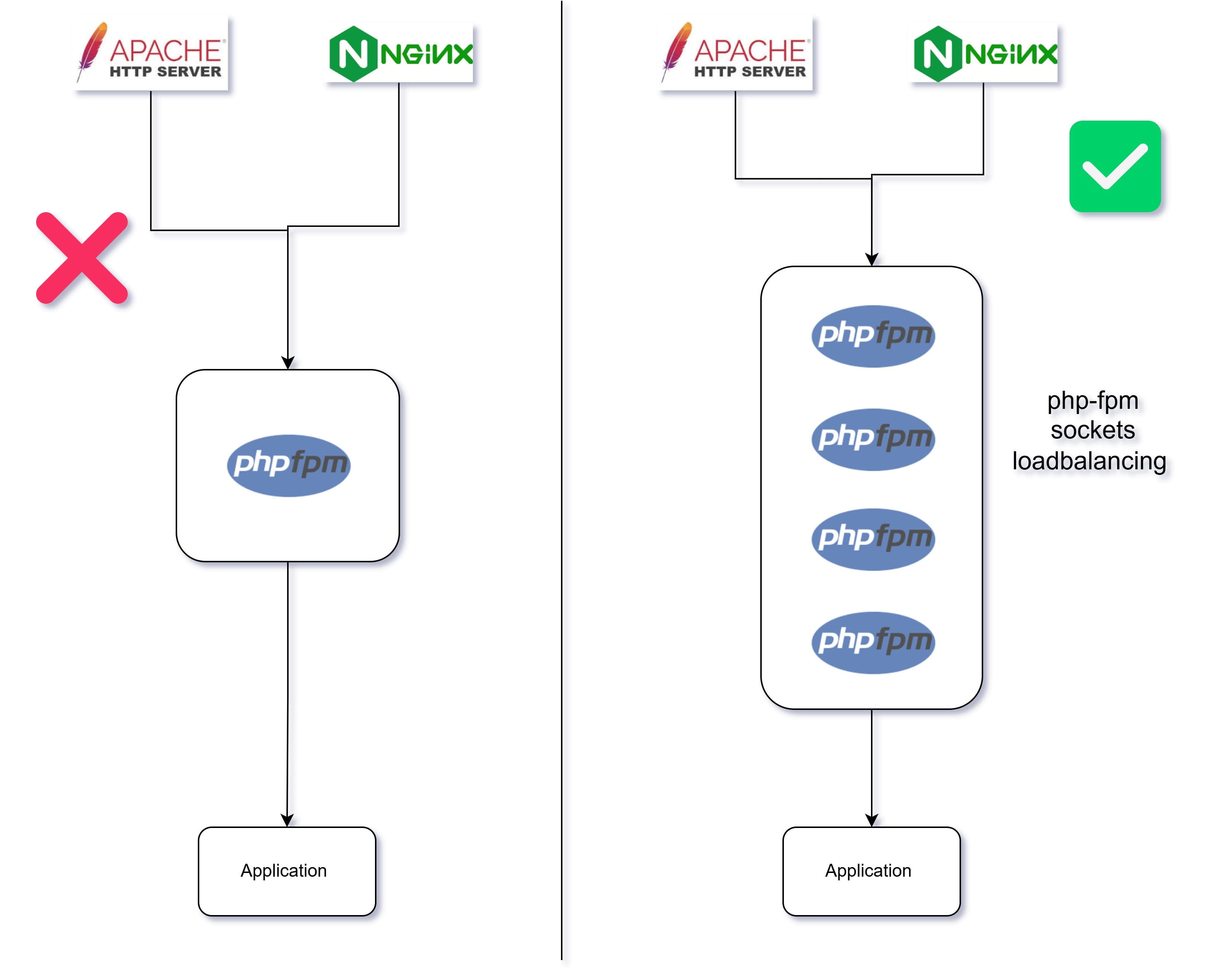

I know we have been in a situation where the PHP application goes down even if there is no CPU and memory usage on both the application and database on the server. This document explains the common bottleneck and blockage issues that occur when using...

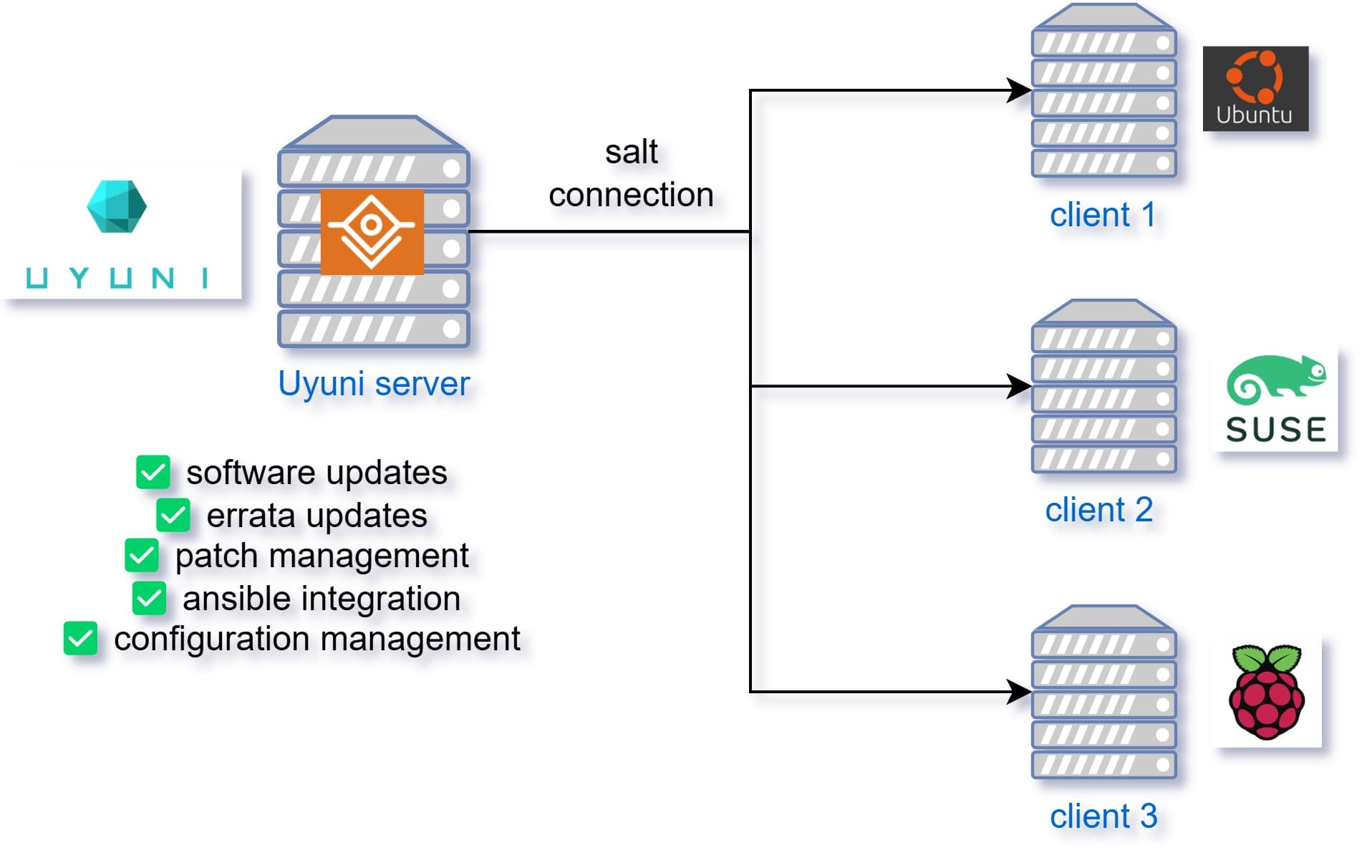

This article explains how to install and manage Uyuni on openSUSE Leap Micro 5.5 and above. The purpose of setting up Uyuni is primarily for patch management, configuration management, and integrating Ansible control. Uyuni serves as a centralized ma...

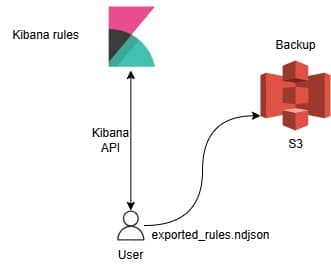

In this guide, we'll learn how to export Kibana detection rules using the Kibana Saved Objects API and store them in an S3 bucket. This approach ensures you have backups of your Kibana rules and can restore them whenever needed. Why Do You Need This?...

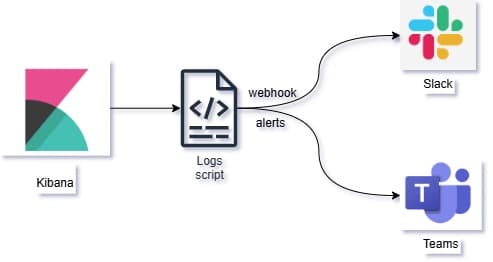

In today's world, it's crucial to monitor your application logs and get alerted about suspicious or critical activities. If you are using Kibana for log monitoring and want to get real-time alerts on Microsoft Teams or Slack, this guide is for you. T...
MySQL replication, specifically, MySQL master slave replication plays a vital role in ensuring data availability by enabling simultaneous copying and replication of data between servers. The MySQL master slave replication proves indispensable for data recovery, offering a reliable backup solution in the face of catastrophes or hardware failures.
Master server: 10.128.0.28
Slave server: 10.128.0.29
Step 1: Install MySQL on Master and Slave Nodes
sudo apt update
To install MySQL on both nodes, execute the command
sudo apt install mysql-server mysql-client
Next, Open the mysql configuration file
sudo vim /etc/mysql/mysql.conf.d/mysqld.cnf
On the Master node, scroll and locate the bind-address attribute as
shown below.
bind-address=127.0.0.1
Change the loopback address to match the IP address of the Master
node.
bind-address=10.128.0.28
Next, specify a value for the server-id attribute in the [mysqld] section.
The number you choose should not match any other server-id number.
Let’s assign the value 1.
server-id=1
At the very end of the configuration file, copy and paste the lines below.
log_bin = /var/log/mysql/mysql-bin.log
log_bin_index =/var/log/mysql/mysql-bin.log.index
relay_log = /var/log/mysql/mysql-relay-bin
relay_log_index = /var/log/mysql/mysql-relay-bin.index
Exit the configuration file and restart MySQL service for the changes to
take effect on Master node.
sudo systemctl restart mysql
To verify that MySQL server is running as expected, issue the command.
sudo systemctl status mysql
Step 2: Create a New User for Replication on Master Node
In this section, we are going to create a replication user in the master
node. To achieve this, log in to the MySQL server as shown.
sudo mysql -u root -p
Next, proceed and execute the queries below to create a replica user and
grant access to the replication slave. Remember to use your IP address.
CREATE USER 'replication_user'@'10.128.0.29' IDENTIFIED BY 'replica_password';
GRANT REPLICATION SLAVE ON *.* TO 'replication_user'@'10.128.0.29';
Next, run the following command.
SHOW MASTER STATUS\G
The output should be similar to what you can see below.
Be keen and note the mysql-bin.000002 value and the Position ID 1643.
These values will be crucial when setting up the slave server.
sudo apt install mysql-server mysql-client
Step 3: Configure the MySQL Slave Server
Head out to the slave server and like we did with the Master server,
open the MySQL configuration file.
sudo vim /etc/mysql/mysql.conf.d/mysqld.cnf
Just like the master server, proceed to edit the following lines.
bind-address = 10.128.0.29
As before, specify a value for the server-id attribute in
the [mysqld] section. This time select a different value. Let’s go with 2.
server-id = 2
Again, paste the lines below at the very end of the configuration file.
log_bin = /var/log/mysql/mysql-bin.log
log_bin_index =/var/log/mysql/mysql-bin.log.index
relay_log = /var/log/mysql/mysql-relay-bin
relay_log_index = /var/log/mysql/mysql-relay-bin.index
Next restart MySQL server on slave node.
sudo systemctl restart mysql
Once done, save and exit the text editor
Next, log in to the MySQL shell as shown.
sudo mysql -u root -p
In this step, you will need to make some configuration that will allow
the slave server to connect to the master server. But first, stop the
slave threads as shown.
STOP SLAVE;
To allow the slave server to replicate the Master server, run the
command.
CHANGE MASTER TO MASTER_HOST ='10.128.0.28', MASTER_USER ='replication_user', MASTER_PASSWORD='Saturn@1234', MASTER_LOG_FILE = 'mysql-bin.000002',MASTER_LOG_POS = 1643;
If you are keen enough, you will observe that we’ve used the mysql-bin.00002 value and position ID 1643 earlier displayed after creating the slave replication user.
Additionally, the Master server’s IP address, replication user and password have been used.
Later, start the thread you had earlier stopped.
mysql> START SLAVE;
check slave status :
mysql> show slave status\G
Now list the databases using the query.
mysql> SHOW DATABASES;
Step 4: Verify the MySQL Master-Slave Replication
To check if the setup is indeed working as expected, we are going to create a new database on the master and check to see if it has been replicated on the MySQL Slave server.
Log into MySQL in the Master server.
sudo mysql -u root -p
Let’s create a test database. In this case, we will create a database called replication_db.
mysql> CREATE DATABASE replication_db;
Now, log in to your MySQL instance in the slave server. sudo mysql -u root -p
Now list the databases using the query.
mysql> SHOW DATABASES;
You will notice the database you created on the master has been replicated on slave. Awesome ! Your MySQL Master-slave replication is working as expected! You can now rest assured that in the event of any failure, copies of database files will be replicated to the slave server.
